Features:. USB to UART cable with +3.3V TTL level UART signals. 6 output wires terminated by a 6 way, 0.1', Single-In-Line (SIL) connector. 6 way outputs provide Tx, Rx, RTS#, CTS#, VCC and GND. Data transfer rates from 300 baud to 3 Mbaud at TTL levels. Connect directly to a microcontroller UART or I/O pins. +3.3V TTL output allows external logic to be powered from the USB port.
Replace MAX232 type level shifters allowing for direct connection of products to PC via USB. Overmolded FT232R chipset provides single chip USB to asynchronous serial data transfer interface.
Works with all Windows and Mac OS versions. FCC and CE compliant. Support:. Compatible with Windows 10, Windows 8, Windows 7, Windows Vista and Windows XP, Windows 98, Android, Linux, Windows ME.NET(4.2 or greater). Has to use third party data management software(Carelink) to work with Mac OS X, Mac OS 9, Mac OS 8 6-Pin Header Assignment: Pin 1 GND Pin 2 CTS Pin 3 VCC Pin 4 TXD Pin 5 RXD Pin 6 RTS The FTDI cable is a USB to Serial (TTL level) converter which allows for a simple way to connect TTL interface devices to USB.
The VCC pins of this FTDI cable are configured to operate at 5V with 3.3V I/O. The FTDI cable is designed around an FT232RL, which is housed in a USB A connector. The other side of the cable is terminated with a 0.1' pitch, 6-pin connector with the following pinout: RTS, RX, TX, 5V, CTS, GND (RTS is the green cable and GND is black).
Ttl232r 3v3 Driver For Mac
FTDI Driver: Specification: TTL-232R-5V, TTL-232R-3V3 Connector Pin Out and Mechanical details. The mechanical details of the 6 way connector are shown in the following diagram. TTL-232R-5V and TTL-232R-3V3 Cable Signal Descriptions. What We Can Do: 1. All of our products have proceeded aging test before shipment and we guarantee to use our products safety.
Support imprint your Logo on products and let your Logo shine anywhere. OEM/OEM orders are warmly welcome! Warranty and Return: 1.
All products and accessoried have been tested by 3 times before ship out. All products have 1 year warranty.If there is any man-made problem, we will replace or repair for you freely. We own the best after-sale service.If any problems happen, our team will do our best to solve for customers.
The USB TTL Serial cables are a range of USB to serial converter cables which provide connectivity between USB and serial UART interfaces. A range of cables are available offering connectivity at 5V, 3.3V or user specified signal levels with various connector interfaces. All cables feature an FTDI FT232R device integrated within the cable USB type ‘A’ connector, which provide access to UART Transmit (Tx), Receive (Rx), RTS#, CTS#, VCC (5V) and GND connections. All cables are fully RoHS compliant and are FCC/CE approved. All cables are 1.8m in length.
Digilife ddv-5120a drivers for macbook pro. Part Number Description Cable Details Link to Datasheet Buy from FTDI TTL UART cables supporting range of voltage I/O levels with wire-ended output TTL-232RG-VSW3V3-WE Supports +3.3V based TTL level UART signals and +3.3V / 50mA power output. Wire ended 6 core, 5mm UL2464 24 AWG output TTL-232RG-VSW5V-WE Supports +5V based TTL level UART signals and +5V / 450mA power output TTL-232RG-VREG3V3-WE Supports +3.3V based TTL level UART signals and +3.3V / 250mA rated power output.
TTL-232RG-VREG1V8-WE Supports +1.8V TTL level UART signals and +1.8V / 100mA rated power output. TTL-232RG-VIP-WE Cable features voltage reference input for setting UART signalling levels.
TTL-232R-3V3-WE Version 1 cable. Supports +3.3V UART signalling and +5V/75mA power output.
TTL-232R-5V-WE Version 1 cable. Supports +5V based UART signalling and +5V/75mA based power output. Connector based cables TTL-232R-3V3 USB cable with 6 way 0.1' pitch single inline connector with +3.3V signalling. 6 way, 0.1' pitch single inline connector TTL-232R-5V USB cable with 6 way 0.1' pitch single inline connector with +5.0V signalling.

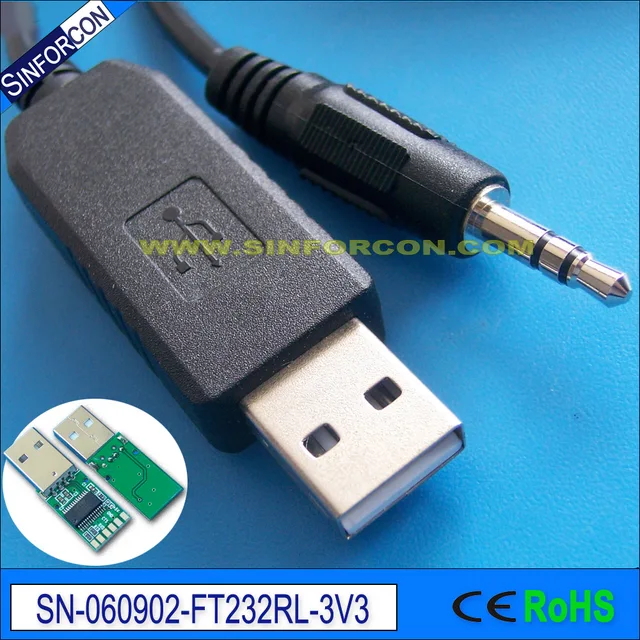

TTL-232R-3V3-2mm USB cable with +3.3V based UART output on 2mm connector. Designed for use with FTDI VDRIVE2 and VMUSIC2 modules. 8-pin, keyed 2mm pitch connector TTL-232R-3V3-AJ Cable with audio jack connector with +3.3V based TX, and RX signalling. 3.5mm audio jack output. Connector configuration: tip - TX, ring - RX, sleeve - GND TTL-232R-5V-AJ Cable with audio jack connector with +5V based TX and RX signalling. PCB assemblies TTL-232R-3V3-PCB PCB only.
Ttl 232r 3v3 Datasheet
Supports +3.3V UART signalling and +5V/75mA power output. No cable – USB connector with PCB only TTL-232R-5V-PCB PCB only. Supports +5V UART signalling and +5V/75mA power output.
